Power Supply, Primary Switch Mode, Narrow Design – MINI-PS-100-240AC/24DC/4

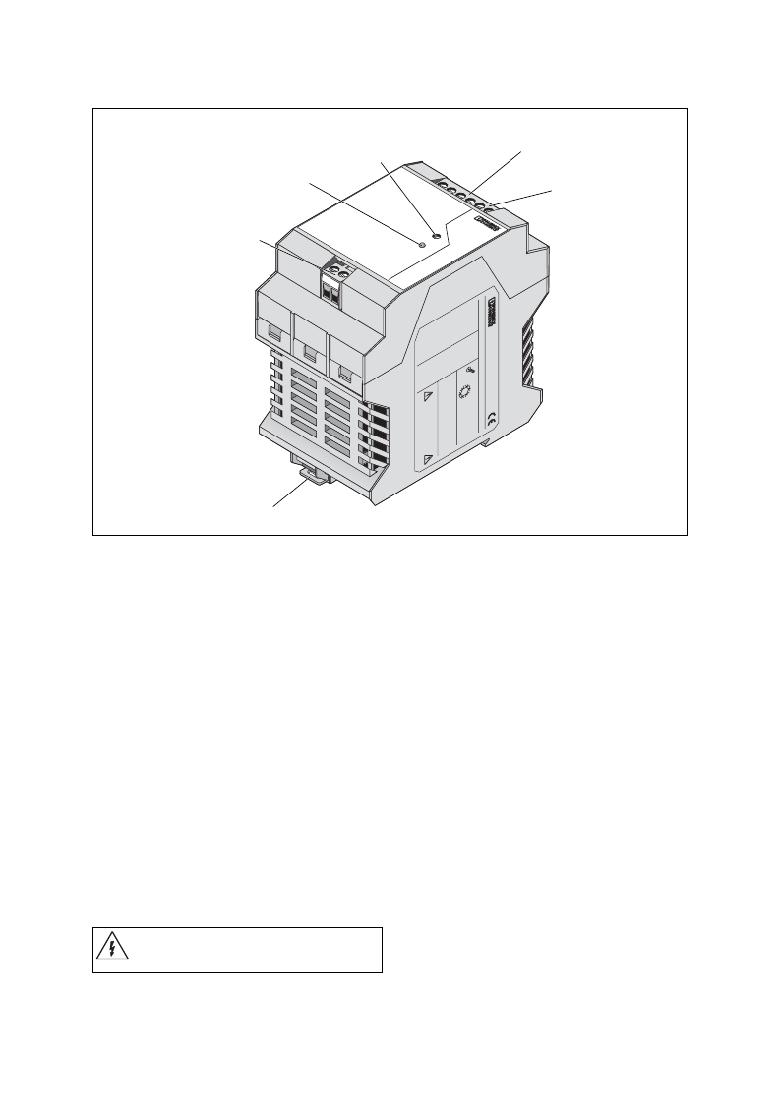

4. Device View, Connections, and Control Elements
5
4
2
MI
N
IP
OW
ER
3
L(+
(-)
1
)N
5
1 AC input:
Input voltage 85 - 264 V AC
Frequency 45 - 65 Hz
(0.2 mm 2 to 2.5 mm 2 solid)
(0.2 mm 2 to 2.5 mm 2 ? exible)
(25 - 14 AWG)
Internal fuse T3.15 AL 250 V
Recommended fuse
6 A or 10 A c.b./Characteristic B
2 DC output:
Output voltage 24 V DC (default),
can be set from 22.5 - 28.5 V DC using
a potentiometer 4 (0.2 mm 2 to 2.5 mm 2 solid)
(0.2 mm 2 to 2.5 mm 2 ? exible) (25 - 14 AWG)
The device is idling-proof and short-circuit-proof.
3 DC OK output active
4 Potentiometer 22.5 - 28.5 V DC
5 DC OK LED
6 Universal latching foot for EN DIN rails
5. Safety and Warning Instructions
Figure 04
Installation and startup must only be carried out by
quali ? ed personnel. The relevant country-speci ? c
regulations (e.g., VDE, DIN) must also be observed.
Before startup it is particularly important to ensure
that:
? The mains have been connected correctly and
protection is provided against electric shock.
? The device can be switched off outside the power
supply according to EN 60950 regulations (e.g., by
the line protection on the primary side).
? All supply lines have suf ? cient fuse protection and
are the correct size.
? All output cables are the correct size for the maximum
device output current or have separate fuse
protection.
? Suf ? cient convection is ensured.
MINI POWER is a built-in device. After installation
the terminal area must be covered to provide suf ? cient
protection against unauthorized access to live parts.
This is ensured by installing the device in the control
cabinet or distributor box.
The device contains dangerous live components
and high levels of stored energy.
To ensure that the device can be operated safely
and all functions can be used, please read these
instructions carefully.
Caution: Never carry out work when the
power is turned on, this is highly
dangerous.
